SKU ASTG09KMTC

Fujitsu Classic Reverse Cycle Split System

by Fujitsu
$890.00
Title

Due to Covid-19 Restrictions around the world. We may experience shipping delays due to Manufacturers stock levels.

Notify me when back in stock

Fujitsu Classic Reverse Cycle Split System

  • Trusted, reliable comfort.
  • A range of wall-mounted split system air conditioning options, with a style to suit many large rooms.
  • Quickly and efficiently conditions any room to ideal comfort levels.
  • Easy to use controllers help you get the best out of your system
FEATURES SPECIFICATIONS ITEMS INCLUDED WITH YOUR PURCHASE
FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG09LVCC
Outdoor unit AOTG09LVCC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 2.50 (0.5 - 3.3)
Heating Capacity kW (Rated (Min - Max)) 3.40 (0.5 - 4)
Input Power Cooling kW (Rated (Min - Max)) 0.58 (0.25 - 1.42)
Input Power Heating kW (Rated (Min - Max)) 0.73 (0.25 - 1.56)
EER Cooling kW/kW 4.31
COP Heating kW/kW 4.66
Star Rating Cooling (0-10) (Hot / Average / Cold) 4.5 / 3.5 / 3.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3.5 / 3 / 2.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 6.304 / 5.341 / 5.405
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.39 / 4.804 / 4.074
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 7.308 / 7.511 / 8.551
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.387 / 5.026 / 4.415
Running Current amps (Cooling / Heating) 2.8 / 3.5
Moisture Removal l/hr 1.3
Indoor Sound Pressure Cooling dBA (High / Quiet) 41 / 21
Indoor Sound Pressure Heating dBA (High / Quiet) 42 / 22
Outdoor Sound Pressure dBA (Cooling / Heating) 47 / 47
Outdoor Sound Power dBA 64
Air Circulation (Indoor - High Fan) Cooling l/sec 219
Air Circulation (Indoor - High Fan) Heating l/sec 225
Indoor Unit Dimensions mm (Height x Width x Depth) 293 x 790 x 225
Indoor Unit Weight kg 9.50
Outdoor Unit Dimensions mm (Height x Width x Depth) 540 x 660 x 290
Outdoor Unit Weight kg 25.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
Pipe Length m (Max (Precharged)) 20 (15)
Max Height Difference m 15
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 850
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG09LVCC

Indoor Unit

AOTG09LVCC

Outdoor Unit

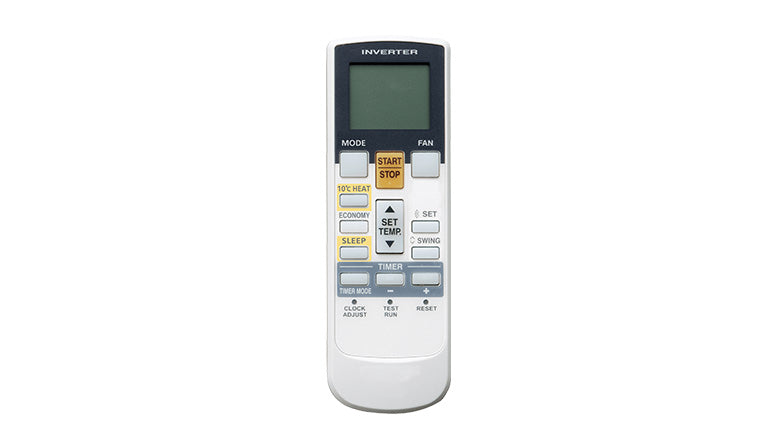

AR-RAH1E

AR-RAH1E

Wireless Remote Controller

FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG12LVCC
Outdoor unit AOTG12LVCC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 3.50 (0.9 - 4)
Heating Capacity kW (Rated (Min - Max)) 4.80 (0.9 - 5.6)
Input Power Cooling kW (Rated (Min - Max)) 0.92 (0.25 - 1.42)
Input Power Heating kW (Rated (Min - Max)) 1.11 (0.25 - 2)
EER Cooling kW/kW 3.8
COP Heating kW/kW 4.32
Star Rating Cooling (0-10) (Hot / Average / Cold) 4.5 / 3.5 / 4
Star Rating Heating (0-10) (Hot / Average / Cold) 3.5 / 3 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 6.172 / 5.388 / 5.629
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.243 / 4.549 / 3.774
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 7.113 / 7.462 / 8.566
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.247 / 4.819 / 4.162
Running Current amps (Cooling / Heating) 4.2 / 5
Moisture Removal l/hr 1.8
Indoor Sound Pressure Cooling dBA (High / Quiet) 42 / 21
Indoor Sound Pressure Heating dBA (High / Quiet) 43 / 22
Outdoor Sound Pressure dBA (Cooling / Heating) 48 / 48
Outdoor Sound Power dBA 66
Air Circulation (Indoor - High Fan) Cooling l/sec 225
Air Circulation (Indoor - High Fan) Heating l/sec 239
Indoor Unit Dimensions mm (Height x Width x Depth) 293 x 790 x 225
Indoor Unit Weight kg 9.50
Outdoor Unit Dimensions mm (Height x Width x Depth) 540 x 790 x 290
Outdoor Unit Weight kg 34.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
Pipe Length m (Max (Precharged)) 20 (15)
Max Height Difference m 15
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 1,050
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG12LVCC

Indoor Unit

AOTG12LVCC

Outdoor Unit

AR-RAH1E

AR-RAH1E

Wireless Remote Controller

FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG18LVCC
Outdoor unit AOTG18LVCC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 5.00 (0.9 - 5.8)
Heating Capacity kW (Rated (Min - Max)) 6.00 (1.05 - 8.1)
Input Power Cooling kW (Rated (Min - Max)) 1.53 (0.18 - 2.03)
Input Power Heating kW (Rated (Min - Max)) 1.49 (0.17 - 3.19)
EER Cooling kW/kW 3.27
COP Heating kW/kW 4.03
Star Rating Cooling (0-10) (Hot / Average / Cold) 4 / 3 / 3.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3.5 / 3 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.58 / 4.995 / 5.335
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.181 / 4.523 / 3.851
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 6.411 / 6.827 / 7.917
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.192 / 4.794 / 4.212
Running Current amps (Cooling / Heating) 6.5 / 6.3
Moisture Removal l/hr 2.6
Indoor Sound Pressure Cooling dBA (High / Quiet) 46 / 29
Indoor Sound Pressure Heating dBA (High / Quiet) 46 / 30
Outdoor Sound Pressure dBA (Cooling / Heating) 52 / 53
Outdoor Sound Power dBA 69
Air Circulation (Indoor - High Fan) Cooling l/sec 267
Air Circulation (Indoor - High Fan) Heating l/sec 267
Indoor Unit Dimensions mm (Height x Width x Depth) 293 x 790 x 225
Indoor Unit Weight kg 9.50
Outdoor Unit Dimensions mm (Height x Width x Depth) 620 x 790 x 290
Outdoor Unit Weight kg 37.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 12.7
Pipe Length m (Max (Precharged)) 20 (15)
Max Height Difference m 15
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 1,450
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG18LVCC

Indoor Unit

AOTG18LVCC

Outdoor Unit

AR-RAH1E

AR-RAH1E

Wireless Remote Controller

FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG22LVCC
Outdoor unit AOTG22LVCC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 6.30 (0.9 - 7.3)
Heating Capacity kW (Rated (Min - Max)) 7.20 (1.05 - 8.7)
Input Power Cooling kW (Rated (Min - Max)) 1.95 (0.18 - 2.75)
Input Power Heating kW (Rated (Min - Max)) 2.03 (0.17 - 4.18)
EER Cooling kW/kW 3.23
COP Heating kW/kW 3.55
Star Rating Cooling (0-10) (Hot / Average / Cold) 3.5 / 3 / 3.5
Star Rating Heating (0-10) (Hot / Average / Cold) 3 / 2 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.149 / 4.789 / 5.119
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.903 / 3.978 / 3.256
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.69 / 6 / 6.682
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.923 / 4.377 / 3.593
Running Current amps (Cooling / Heating) 8.2 / 8.5
Moisture Removal l/hr 2.7
Indoor Sound Pressure Cooling dBA (High / Quiet) 48 / 32
Indoor Sound Pressure Heating dBA (High / Quiet) 48 / 32
Outdoor Sound Pressure dBA (Cooling / Heating) 55 / 56
Outdoor Sound Power dBA 72
Air Circulation (Indoor - High Fan) Cooling l/sec 267
Air Circulation (Indoor - High Fan) Heating l/sec 267
Indoor Unit Dimensions mm (Height x Width x Depth) 293 x 790 x 225
Indoor Unit Weight kg 10.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 620 x 790 x 290
Outdoor Unit Weight kg 40.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 15.88
Pipe Length m (Max (Precharged)) 20 (15)
Max Height Difference m 15
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 1,550
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG22LVCC

Indoor Unit

AOTG22LVCC

Outdoor Unit

AR-RAH1E

AR-RAH1E

Wireless Remote Controller

FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Double Swing Automatic
    Double Swing Automatic

    Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG24LFCC
Outdoor unit AOTG24LFCC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 7.10 (0.9 - 8.3)
Heating Capacity kW (Rated (Min - Max)) 8.00 (0.9 - 10.6)
Input Power Cooling kW (Rated (Min - Max)) 2.17 (0.3 - 3.21)
Input Power Heating kW (Rated (Min - Max)) 2.26 (0.28 - 4.4)
EER Cooling kW/kW 3.27
COP Heating kW/kW 3.54
Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold) 3 / 2.5 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.908 / 4.522 / 4.754
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.717 / 4.035 / 3.393
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.388 / 5.601 / 6.149
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.732 / 4.318 / 3.758
Running Current amps (Cooling / Heating) 9.1 / 9.5
Moisture Removal l/hr 2.7
Indoor Sound Pressure Cooling dBA (High / Quiet) 49 / 32
Indoor Sound Pressure Heating dBA (High / Quiet) 48 / 32
Outdoor Sound Pressure dBA (Cooling / Heating) 55 / 56
Outdoor Sound Power dBA 71
Air Circulation (Indoor - High Fan) Cooling l/sec 311
Air Circulation (Indoor - High Fan) Heating l/sec 311
Indoor Unit Dimensions mm (Height x Width x Depth) 320 x 998 x 238
Indoor Unit Weight kg 14.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 620 x 790 x 290
Outdoor Unit Weight kg 41.00
Piping Connects mm Ø (Liquid / Gas) 6.35 / 15.88
Pipe Length m (Max (Precharged)) 30 (15)
Max Height Difference m 20
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 1,800
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG24LFCC

Indoor Unit

AOTG24LFCC

Outdoor Unit

AR-RAH1E

AR-RAH1E

Wireless Remote Controller

FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Double Swing Automatic
    Double Swing Automatic

    Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG30LFCC
Outdoor unit AOTG30LFTC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 8.00 (2.9 - 9)
Heating Capacity kW (Rated (Min - Max)) 9.00 (2.2 - 11)
Input Power Cooling kW (Rated (Min - Max)) 2.42 (0.58 - 4.04)
Input Power Heating kW (Rated (Min - Max)) 2.64 (0.5 - 4.52)
EER Cooling kW/kW 3.31
COP Heating kW/kW 3.41
Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 2.5 / 2.5
Star Rating Heating (0-10) (Hot / Average / Cold) 2 / 2 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.568 / 4.246 / 4.407
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 3.835 / 3.532 / 3.199
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.011 / 5.179 / 5.711
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 3.831 / 3.644 / 3.364
Running Current amps (Cooling / Heating) 10.2 / 11.1
Moisture Removal l/hr 3.2
Indoor Sound Pressure Cooling dBA (High / Quiet) 49 / 33
Indoor Sound Pressure Heating dBA (High / Quiet) 49 / 33
Outdoor Sound Pressure dBA (Cooling / Heating) 53 / 55
Outdoor Sound Power dBA 68
Air Circulation (Indoor - High Fan) Cooling l/sec 311
Air Circulation (Indoor - High Fan) Heating l/sec 319
Indoor Unit Dimensions mm (Height x Width x Depth) 320 x 998 x 238
Indoor Unit Weight kg 14.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 830 x 900 x 330
Outdoor Unit Weight kg 61.00
Piping Connects mm Ø (Liquid / Gas) 9.52 / 15.88
Pipe Length m (Max (Precharged)) 50 (20)
Max Height Difference m 30
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 2,100
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG30LFCC

Indoor Unit

AOTG30LFTC

Outdoor Unit

AR-RAH1E

AR-RAH1E

Wireless Remote Controller

FEATURES
  • 10 Degree Heat
    10°C Heat Operation

    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.

  • All DC
    All DC

    With All DC, electricity loss is decreased and power consumption reduced.

  • Apple Catechin Filter
    Apple-Catechin Filter

    Fine dust, invisible mould spores and harmful microorganisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.

  • Auto Restart
    Auto Restart

    Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Shut Louvre
    Auto Shut Louvre

    The auto shut louvres close or open automatically when the unit stops or starts.

  • Auto Changeover
    Auto Changeover

    The unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Automatic Air Flow Adjustment
    Automatic Air Flow Adjustment

    The micro-processor automatically adjusts the air flow to follow changes in room temperature.

  • Automatic Louvre
    Automatic Louvre

    The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.

  • Blue Fin Heat Exchanger
    Blue Fin Heat Exchanger

    Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Demand Response
    Demand Response

    This product is designed to be compatible with Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes the air conditioner switches over to the appropriate operation.

  • Double Swing Automatic
    Double Swing Automatic

    Complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.

  • Economy Mode
    Economy Mode

    Limits the maximum operation current, and performs operation with the power consumption suppressed.

  • Filter Sign
    Filter Sign

    Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.

  • i-PAM
    i-PAM

    i-PAM inverter technology enables high output and high efficiency performance.

  • Long Life Ion Deodorisation Filter
    Long-Life Ion Deodorisation Filter

    The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.

  • ON-OFF Timer
    On-Off Timer

    ON-OFF timer can be set to operate once every 24 hours.

  • Program Timer
    Program Timer

    This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.

  • Sleep Timer
    Sleep Timer

    The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.

  • Super Quiet Mode
    Super Quiet Mode

    The indoor units fan can operate at a low speed to produce quieter operation.

  • Up Down Swing
    Up/Down Swing Louvre

    The up/down louvre automatically swings up and down.

  • v-PAM
    V-PAM

    v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.

  • Washable Panel
    Washable Panel

    Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.

SPECIFICATIONS
Indoor unit ASTG34LFCC
Outdoor unit AOTG34LFTC
Operation Type Reverse Cycle
Power Source V/Ph/Hz 240 / 1 / 50
Cooling Capacity kW (Rated (Min - Max)) 9.20 (2.9 - 10)
Heating Capacity kW (Rated (Min - Max)) 10.00 (2.7 - 11.2)
Input Power Cooling kW (Rated (Min - Max)) 2.8 (0.59 - 4.4)
Input Power Heating kW (Rated (Min - Max)) 3.03 (0.6 - 4.52)
EER Cooling kW/kW 3.29
COP Heating kW/kW 3.3
Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 2.5 / 3
Star Rating Heating (0-10) (Hot / Average / Cold) 2 / 1.5 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.756 / 4.417 / 4.619
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 3.522 / 3.307 / 3.051
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.243 / 5.465 / 6.06
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 3.512 / 3.377 / 3.162
Running Current amps (Cooling / Heating) 11.8 / 12.8
Moisture Removal l/hr 3.5
Indoor Sound Pressure Cooling dBA (High / Quiet) 52 / 34
Indoor Sound Pressure Heating dBA (High / Quiet) 52 / 34
Outdoor Sound Pressure dBA (Cooling / Heating) 53 / 53
Outdoor Sound Power dBA 68
Air Circulation (Indoor - High Fan) Cooling l/sec 347
Air Circulation (Indoor - High Fan) Heating l/sec 339
Indoor Unit Dimensions mm (Height x Width x Depth) 320 x 998 x 238
Indoor Unit Weight kg 14.00
Outdoor Unit Dimensions mm (Height x Width x Depth) 1290 x 900 x 330
Outdoor Unit Weight kg 86.00
Piping Connects mm Ø (Liquid / Gas) 9.52 / 15.88
Pipe Length m (Max (Precharged)) 50 (20)
Max Height Difference m 30
Operation Range Cooling °CDB (Min to Max) -10 to 46
Operation Range Heating °CDB (Min to Max) -15 to 24
Refrigerant Type R410A
Refrigerant Amount g 2,750
ITEMS INCLUDED WITH YOUR PURCHASE
ASTG09-12-18-22LVCC

ASTG34LFCC

Indoor Unit

AOTG34LFTC

Outdoor Unit

AR-RAH1E

AR-RAH1E

Wireless Remote Controller
