SKU AR09TXHYCWKNSA

Samsung GEO+ Split System

by Samsung
$900.00
Title

Due to Covid-19 Restrictions around the world. We may experience shipping delays due to Manufacturers stock levels.

Notify me when back in stock

Samsung GEO+ Split System

Samsung GEO+ Split System

Title

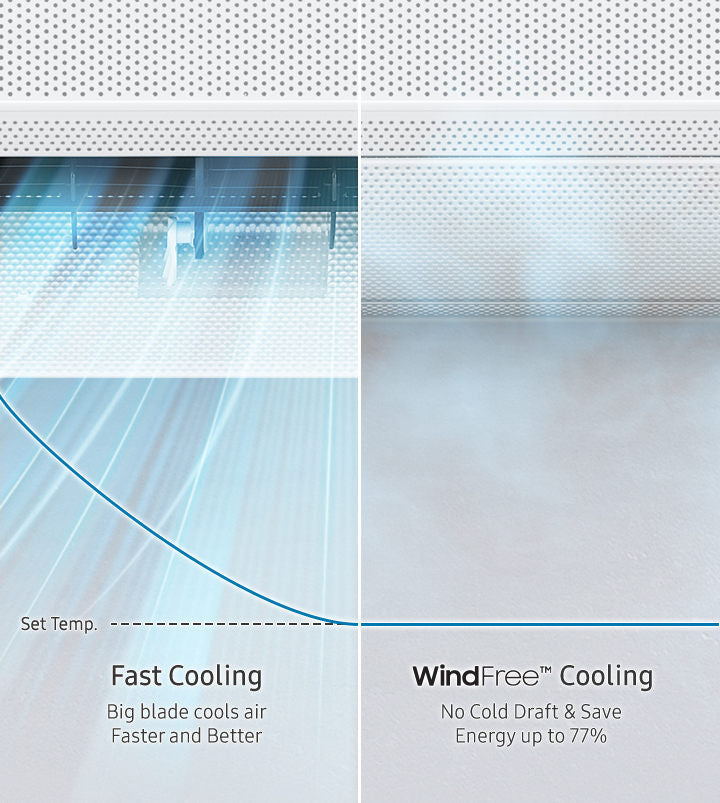

Cool down fast, without the cold blast

Content

WindFree™

Stay comfortably cool with WindFree™ Cooling.* It is designed to gently and quietly disperse air through 23,000 micro air holes, so there is no unpleasant feeling of cold wind on your skin.

Video

Content Block

Heading

Energy Superstar

Content

WindFree™* Cooling Mode

When operating in WindFree™ for Cooling mode, the outdoor unit consumes over 77% less energy than when operating in Fast Cooling mode.**

** Tested on the AR07T9170HA3 model, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode. Illustration indicative only, actual effect will vary.

Feature Images

Heading

Supporting a restful night's sleep

Content

WindFree™* Good Sleep

WindFree™™ Good Sleep mode can help you to create the ideal sanctuary for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™* Cooling can help you to set the environment for a deep, comfortable sleep to wake up feeling fully refreshed.

*Creates a ‘Still Air’ environment. ASHRAE defines “Still Air” as air currents at speeds below 0.15m/s which lacks the presence of cold drafts. The device provides cooling at or below this speed in WindFree™ Cooling mode.

Feature Images

Heading

Breathes in the things you shouldn't

Content

Tri-Care Filter

Keep the air hygienic and maintain the performance of the Heat Exchanger with a Tri-Care Filter. Its 3 layers include a high-density filter that is designed to help extract large dust particles, fibers and even animal hairs. It also has a Zeolite Coating Filter that is designed to help capture fine dust, and reduce certain potentially dangerous viruses, bacteria and allergens.

~Tested at test lab in Korea for anti bacteria & virus, and Japan test lab for anti allergy. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use. Bacteria testing and results are for Staphylococcus aureus and Klebsiella pneumoniae bacteria. Illustrative image simulated

Feature Images

Heading

Keep Fresh

Content

Auto Clean Function

When the Air Conditioner unit is turned off, the Auto Clean function automatically runs the fan on low speed for a period of time to dry off moisture within the heat exchanger of the indoor unit. This keeps it dry to minimise the growth of bacteria.

* Image simulated for illustrative purposes only

Feature Images

Heading

Cool the house from your commute

Content

Wi-Fi and the SmartThings app

Control your home air conditioner from anywhere, at anytime using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch.##

##Each SmartThings compatible device requires a network connection. Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Compatible devices and available features depend on country, region and carrier. Check compatible devices and available features at Samsung SmartThings App search or in the SmartThings app. A Wi-Fi connection and compatible phone is required.

Feature Images

Heading

Does the thinking for you

Content

AI Auto Cooling

AI Auto Cooling* is designed to automatically optimise the various modes by analysing room conditions and usage patterns.** Based on your preferred temperature, it can automatically switch to the most appropriate mode to maintain desirable conditions.

*A Wi-Fi connection and a Samsung account are required. **Stores user data, preferences and usage patterns to suggest the most appropriate operating function. Illustration indicative only, actual effect will vary.

Heading

Rest assured with Samsung Quality

Content

5 Year Parts and Labour Warranty

Samsung wall mounted splits are supported by 5 year parts and labour warranty for residential applications.` Full terms and conditions visit Samsung Warranty

`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.

Feature Images

Heading

Prevent corrosion for lasting cooling

Content

DuraFin™ Plus

The outdoor unit heat exchanger is made of corrosion-resistant material to help protect the heat exchanger coil from rusting, helping to maintain the optimal performance of the Heat Exchanger. Its corrosion-resistance was tested using the Salt Spray Test (SST) for 480 hours``.

``Tested on AR12TXFCAWKNEU model.

Feature Images

Heading

Maintain temperature. Maximise efficiency.

Content

Digital Inverter Boost

Samsung's Digital Inverter Boost technology is designed to maintain the desired temperature with less fluctuation and reduce energy consumption by up to 73%*. It uses strong magnets made of Neodymium and includes a twin-tube muffler, working efficiently and produces minimal noise and vibration.

* Tested on AR09TXCAAWKNEU model, and compared to Samsung conventional model AQ09TSLXEA ** Illustrative image simulated

Feature Images

Heading

Thoughtful Design

Content

Smart Operation


R32 Refrigerant - Next generation environmental refrigerant
MEPS Compliant - Meets government minimum energy performance standards
D.R.E.D Demand Response Enabled Device - All Samsung Wall Mounted Split Systems enable D.R.E.D. with the option of DRM1, DRM2, and DRM3 levels.

Feature Images

Heading

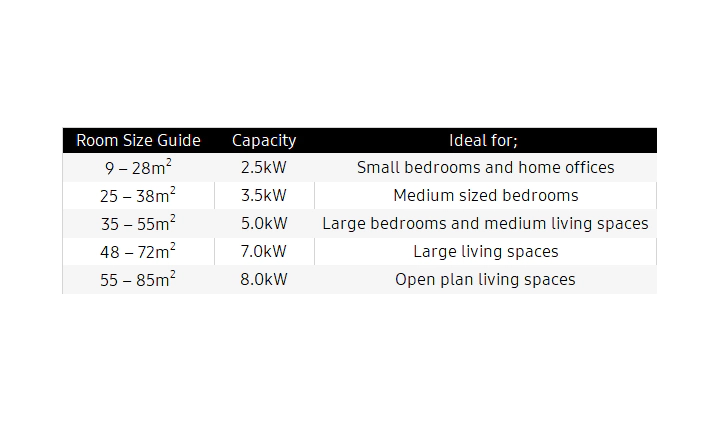

What size do I need?

Content

This information should be used as a guide only. There are many variables that will affect the requirements of your air conditioning, such as orientation, usage, dimensions, construction materials, insulation, equipment, heat loads etc. For cooling, if your room is a warm room with a lot of sun during summer then recommend to use the smaller room size as your guide.

Feature Images

Specs

all specs

Rated Capacity

  • Capacity (Cooling) 2.50 kW
  • Capacity (Heating) 3.20 kW
  • Capacity (Cooling, Min - Max), kW 0.96 ~ 3.35 kW
  • Capacity (Heating, Min - Max), kW 0.72 ~ 5.0 kW

Energy Efficiency

  • AEER (Cooling) 4.36 W/W
  • ACOP (Heating) 4.30 W/W
  • EER (Std, Cooling) 4.39 W/W
  • COP (Std, Heating) 4.32 W/W
  • Star Rating (Cooling - Hot/Average/Cold) 5.0 / 4.5 / 4.5
  • Star Rating (Heating - Hot/Average/Cold) 3.5 / 3.0 / 2.5

Noise Level

  • Sound Pressure Level (Indoor, High / Low) 38 / 17 dBA
  • Sound Pressure Level (Outdoor) 45 dBA

Electrical Data

  • Power Source (V/Hz/Ph) 1 / 220~240 / 50
  • Power Input (Cooling / Heating) 570 W
  • Current Input (Cooling) 3.4 A
  • Current Input (Heating) 3.7 A

Physical specification

  • Shipping Dimension (Indoor, WxHxD) 950*290*375 mm
  • Shipping Weight (Indoor) 11.6 kg
  • Shipping Dimension (Outdoor, WxHxD) 913*622*371 mm
  • Shipping Weight (Outdoor) 31.9 kg
  • Net Dimension (Indoor, WxHxD) 889*299*215 mm
  • Net Dimension (Outdoor, WxHxD) 790*548*285 mm
  • Net Unit Weight (Indoor) 10.1 kg
  • Net Unit Weight (Outdoor) 29.8 kg

Technical Information

  • Piping Length ( Max) 15 m
  • Piping Height (Max) 8 m
  • Connection Size (Liquid, OD) mm 6.35
  • Connection Size (Suction) mm 9.52
  • Refrigerant (Type) R32
  • Refrigerant (Charging, kg) 0.95 kg
  • Refrigerant (Charging, tCO2e) 0.64 tCO2e
  • Operating Temperature Range (Cooling) -10 ~ 46 ℃
  • Operating Temperature Range (Heating) -15 ~ 24 ℃
  • Compressor Type BLDC
  • Anti-Corrosion Fin (Outdoor Unit) Yes

Operating Mode

  • 2 Step Cooling (Fast + Comfort) No
  • Auto Mode Yes
  • Fast Cool Yes
  • Comfort Cool No
  • D'light Cool No
  • Good Sleep Yes
  • Single User Mode No
  • Eco Mode Yes
  • Dehumidification Yes
  • Fan Mode Yes
  • Quiet Mode No

Air Flow

  • Air Direction Control (Up/Down) Auto
  • Air Direction Control (Left/Right) Auto
  • Air Flow Speeds (Cool/Fan) 5/4
  • Wind-Free™ No

Air Purification

  • PM 1.0 Filter No
  • Tri Care Filter No
  • Easy Filter Plus (Anti-Bacteria) Yes
  • Auto Clean (Self Cleaning) Yes

Convenience

  • SmartThings No
  • AI Auto Cooling No
  • Motion Detect Sensor Yes
  • Smart Check Yes
  • Smart Service Yes
  • Remote Controller No
  • Real-Time Timer Yes
  • Auto Changeover Yes
  • Auto Restart Yes
  • Filter Cleaning Indicator Yes
  • Indoor Temp. Display Yes
  • Display On/Off Yes
  • MEPS Yes
  • DRED No

Smart

  • WiFi Embedded No

App Connectivity

  • SmartThings App Support No

Specs

all specs

Rated Capacity

  • Capacity (Cooling) 3.50 kW
  • Capacity (Heating) 4.00 kW
  • Capacity (Cooling, Min - Max), kW 0.99 ~ 4.0 kW
  • Capacity (Heating, Min - Max), kW 0.74 ~ 5.5 kW

Energy Efficiency

  • AEER (Cooling) 3.79 W/W
  • ACOP (Heating) 3.80 W/W
  • EER (Std, Cooling) 3.80 W/W
  • COP (Std, Heating) 3.81 W/W
  • COP (Heating, Btu/hW) 3.81 Btu/hW
  • Star Rating (Cooling - Hot/Average/Cold) 4.5 / 4.0 / 4.5
  • Star Rating (Heating - Hot/Average/Cold) 3.0 / 2.5 / 2.0

Noise Level

  • Sound Pressure Level (Indoor, High / Low) 40 / 17 dBA
  • Sound Pressure Level (Outdoor) 46 dBA

Electrical Data

  • Power Source (V/Hz/Ph) 1 / 220~240 / 50
  • Power Input (Cooling / Heating) 920 W
  • Current Input (Cooling) 4.5 A
  • Current Input (Heating) 5.1 A

Physical specification

  • Shipping Dimension (Indoor, WxHxD) 950*290*375 mm
  • Shipping Weight (Indoor) 11.6 kg
  • Shipping Dimension (Outdoor, WxHxD) 913*622*371 mm
  • Shipping Weight (Outdoor) 31.9 kg
  • Net Dimension (Indoor, WxHxD) 889*299*215 mm
  • Net Dimension (Outdoor, WxHxD) 790*548*285 mm
  • Net Unit Weight (Outdoor) 29.8 kg

Technical Information

  • Piping Length ( Max) 15 m
  • Piping Height (Max) 8 m
  • Connection Size (Liquid, OD) mm 6.35
  • Connection Size (Suction) mm 9.52
  • Refrigerant (Type) R32
  • Refrigerant (Charging, kg) 0.95 kg
  • Refrigerant (Charging, tCO2e) 0.64 tCO2e
  • Operating Temperature Range (Cooling) -10 ~ 46 ℃
  • Operating Temperature Range (Heating) -15 ~ 24 ℃
  • Compressor Type BLDC
  • Anti-Corrosion Fin (Outdoor Unit) Yes

Operating Mode

  • 2 Step Cooling (Fast + Comfort) No
  • Auto Mode Yes
  • Fast Cool Yes
  • Comfort Cool No
  • D'light Cool No
  • Good Sleep Yes
  • Single User Mode No
  • Eco Mode Yes
  • Dehumidification Yes
  • Fan Mode Yes
  • Quiet Mode Yes

Air Flow

  • Air Direction Control (Up/Down) Auto
  • Air Direction Control (Left/Right) Auto
  • Air Flow Speeds (Cool/Fan) 5/4
  • Wind-Free™ No

Air Purification

  • PM 1.0 Filter No
  • Tri Care Filter No
  • Easy Filter Plus (Anti-Bacteria) Yes
  • Auto Clean (Self Cleaning) Yes

Convenience

  • SmartThings No
  • AI Auto Cooling No
  • Motion Detect Sensor Yes
  • Smart Check Yes
  • Smart Service Yes
  • Remote Controller No
  • Real-Time Timer Yes
  • Auto Changeover Yes
  • Auto Restart Yes
  • Filter Cleaning Indicator Yes
  • Indoor Temp. Display Yes
  • Display On/Off Yes
  • MEPS Yes
  • DRED No

Smart

  • WiFi Embedded No

App Connectivity

  • SmartThings App Support No

Specs

all specs

Rated Capacity

  • Capacity (Cooling) 5.00 kW
  • Capacity (Heating) 6.00 kW
  • Capacity (Cooling, Min - Max), kW 1.6 ~ 6.7 kW
  • Capacity (Heating, Min - Max), kW 1.3 ~ 8.0 kW

Energy Efficiency

  • AEER (Cooling) 3.59 W/W
  • ACOP (Heating) 3.52 W/W
  • EER (Std, Cooling) 3.60 W/W
  • COP (Std, Heating) 3.53 W/W
  • Star Rating (Cooling - Hot/Average/Cold) 3.5 / 3.5 / 3.5
  • Star Rating (Heating - Hot/Average/Cold) 3.0 / 2.0 / 1.5

Noise Level

  • Sound Pressure Level (Indoor, High / Low) 41 / 25 dBA
  • Sound Pressure Level (Outdoor) 51 dBA

Electrical Data

  • Power Source (V/Hz/Ph) 1 / 220~240 / 50
  • Power Input (Cooling / Heating) 1390 W
  • Current Input (Cooling) 6.4 A
  • Current Input (Heating) 7.8 A

Physical specification

  • Shipping Dimension (Indoor, WxHxD) 1115*290*375 mm
  • Shipping Weight (Indoor) 13.2 kg
  • Shipping Dimension (Outdoor, WxHxD) 1023*724*413
  • Shipping Weight (Outdoor) 43.1 kg
  • Net Dimension (Indoor, WxHxD) 1055*299*215 mm
  • Net Dimension (Outdoor, WxHxD) 880*638*310 mm
  • Net Unit Weight (Indoor) 11.5 kg
  • Net Unit Weight (Outdoor) 39.5 kg

Technical Information

  • Piping Length ( Max) 30 m
  • Piping Height (Max) 15 m
  • Connection Size (Liquid, OD) mm 6.35
  • Connection Size (Suction) mm 12.7
  • Refrigerant (Type) R32
  • Refrigerant (Charging, kg) 1.30 kg
  • Operating Temperature Range (Cooling) -10 ~ 46 ℃
  • Operating Temperature Range (Heating) -15 ~ 24 ℃
  • Compressor Type BLDC
  • Anti-Corrosion Fin (Outdoor Unit) Yes

Operating Mode

  • 2 Step Cooling (Fast + Comfort) No
  • Auto Mode Yes
  • Fast Cool Yes
  • Comfort Cool No
  • D'light Cool No
  • Good Sleep Yes
  • Single User Mode No
  • Eco Mode Yes
  • Dehumidification Yes
  • Fan Mode Yes
  • Quiet Mode Yes

Air Flow

  • Air Direction Control (Up/Down) Auto
  • Air Direction Control (Left/Right) Auto
  • Air Flow Speeds (Cool/Fan) 5/4
  • Wind-Free™ No

Air Purification

  • PM 1.0 Filter No
  • Tri Care Filter No
  • Easy Filter Plus (Anti-Bacteria) Yes
  • Auto Clean (Self Cleaning) Yes

Convenience

  • SmartThings No
  • AI Auto Cooling No
  • Motion Detect Sensor No
  • Motion Sensor Saver Yes
  • Smart Check Yes
  • Smart Service Yes
  • Remote Controller No
  • Real-Time Timer Yes
  • Auto Changeover Yes
  • Auto Restart Yes
  • Filter Cleaning Indicator Yes
  • Indoor Temp. Display Yes
  • Display On/Off Yes
  • MEPS Yes
  • DRED No

Smart

  • WiFi Embedded No

App Connectivity

  • SmartThings App Support No

Specs

all specs

Rated Capacity

  • Capacity (Cooling) 6.80 kW
  • Capacity (Heating) 7.20 kW
  • Capacity (Cooling, Min - Max), kW 1.4 ~ 7.6 kW
  • Capacity (Heating, Min - Max), kW 1.2 ~ 9.4 kW

Energy Efficiency

  • AEER (Cooling) 3.3 W/W
  • ACOP (Heating) 3.27 W/W
  • EER (Std, Cooling) 3.30 W/W
  • COP (Std, Heating) 3.27 W/W
  • Star Rating (Cooling - Hot/Average/Cold) 3.0 / 3.0 / 3.0
  • Star Rating (Heating - Hot/Average/Cold) 3.0 / 2.0 / 1.5

Noise Level

  • Sound Pressure Level (Indoor, High / Low) 45 / 26 dBA
  • Sound Pressure Level (Outdoor) 54 dBA

Electrical Data

  • Power Source (V/Hz/Ph) 1 / 220~240 / 50
  • Power Input (Cooling / Heating) 2060 W
  • Current Input (Cooling) 9.7 A
  • Current Input (Heating) 9.8 A

Physical specification

  • Shipping Dimension (Indoor, WxHxD) 1115*290*375 mm
  • Shipping Weight (Indoor) 13.2 kg
  • Shipping Dimension (Outdoor, WxHxD) 1023*724*413 mm
  • Shipping Weight (Outdoor) 46.2 kg
  • Net Dimension (Indoor, WxHxD) 1055*299*215 mm
  • Net Dimension (Outdoor, WxHxD) 880*638*310 mm
  • Net Unit Weight (Indoor) 11.6 kg
  • Net Unit Weight (Outdoor) 43.2 kg

Technical Information

  • Piping Length ( Max) 30 m
  • Piping Height (Max) 15 m
  • Connection Size (Liquid, OD) mm 6.35
  • Connection Size (Suction) mm 15.88
  • Refrigerant (Type) R32
  • Operating Temperature Range (Cooling) -10 ~ 46 ℃
  • Operating Temperature Range (Heating) -15 ~ 24 ℃
  • Compressor Type BLDC
  • Anti-Corrosion Fin (Outdoor Unit) Yes

Operating Mode

  • 2 Step Cooling (Fast + Comfort) No
  • Auto Mode Yes
  • Fast Cool Yes
  • Comfort Cool No
  • D'light Cool No
  • Good Sleep Yes
  • Single User Mode No
  • Eco Mode Yes
  • Dehumidification Yes
  • Fan Mode Yes
  • Quiet Mode Yes

Air Flow

  • Air Direction Control (Up/Down) Auto
  • Air Direction Control (Left/Right) Auto
  • Air Flow Speeds (Cool/Fan) 5/4
  • Wind-Free™ No

Air Purification

  • PM 1.0 Filter No
  • Tri Care Filter No
  • Easy Filter Plus (Anti-Bacteria) Yes
  • Auto Clean (Self Cleaning) Yes

Convenience

  • SmartThings No
  • AI Auto Cooling No
  • Motion Detect Sensor Yes
  • Smart Check Yes
  • Smart Service Yes
  • Remote Controller No
  • Real-Time Timer Yes
  • Auto Changeover Yes
  • Auto Restart Yes
  • Filter Cleaning Indicator Yes
  • Indoor Temp. Display Yes
  • Display On/Off Yes
  • MEPS Yes
  • DRED No

Smart

  • WiFi Embedded No

App Connectivity

  • SmartThings App Support No

Specs

all specs

Rated Capacity

  • Capacity (Cooling) 8.00 kW
  • Capacity (Heating) 9.00 kW
  • Capacity (Cooling, Min - Max), kW 2.5 ~ 9.3 kW
  • Capacity (Heating, Min - Max), kW 2.4 ~ 13.0 kW

Energy Efficiency

  • AEER (Cooling) 3.26 W/W
  • ACOP (Heating) 3.27 W/W
  • EER (Std, Cooling) 3.27 W/W
  • COP (Std, Heating) 3.27 W/W
  • Star Rating (Cooling - Hot/Average/Cold) 3.0 / 3.0 / 3.0
  • Star Rating (Heating - Hot/Average/Cold) 3.0 / 2.0 / 1.5

Noise Level

  • Sound Pressure Level (Indoor, High / Low) 47 / 30 dBA
  • Sound Pressure Level (Outdoor) 57 dBA

Electrical Data

  • Power Source (V/Hz/Ph) 1 / 220~240 / 50
  • Power Input (Cooling / Heating) 2450 W
  • Current Input (Cooling) 11.1 A
  • Current Input (Heating) 12.5 A

Physical specification

  • Shipping Dimension (Indoor, WxHxD) 1115*290*375 mm
  • Shipping Weight (Indoor) 14.0 kg
  • Shipping Dimension (Outdoor, WxHxD) 995*1096*426 mm
  • Shipping Weight (Outdoor) 72.0 kg
  • Net Dimension (Indoor, WxHxD) 1055*299*215 mm
  • Net Dimension (Outdoor, WxHxD) 940*998*330 mm
  • Net Unit Weight (Indoor) 12.4 kg
  • Net Unit Weight (Outdoor) 67.8 kg

Technical Information

  • Piping Length ( Max) 30 m
  • Piping Height (Max) 15 m
  • Connection Size (Liquid, OD) mm 6.35
  • Connection Size (Suction) mm 15.88
  • Refrigerant (Type) R32
  • Operating Temperature Range (Cooling) -10 ~ 46 ℃
  • Operating Temperature Range (Heating) -15 ~ 24 ℃
  • Compressor Type BLDC
  • Piping Height (Max, m) Yes
  • Anti-Corrosion Fin (Outdoor Unit) Yes

Operating Mode

  • 2 Step Cooling (Fast + Comfort) No
  • Auto Mode Yes
  • Fast Cool Yes
  • Comfort Cool No
  • D'light Cool No
  • Good Sleep Yes
  • Single User Mode No
  • Eco Mode Yes
  • Dehumidification Yes
  • Fan Mode Yes
  • Quiet Mode Yes

Air Flow

  • Air Direction Control (Up/Down) Auto
  • Air Direction Control (Left/Right) Auto
  • Air Flow Speeds (Cool/Fan) 5/4

Air Purification

  • PM 1.0 Filter No
  • Tri Care Filter No
  • Easy Filter Plus (Anti-Bacteria) Yes
  • Auto Clean (Self Cleaning) Yes

Convenience

  • SmartThings No
  • AI Auto Cooling No
  • Motion Detect Sensor Yes
  • Smart Check Yes
  • Smart Service Yes
  • Remote Controller No
  • Real-Time Timer Yes
  • Auto Changeover Yes
  • Auto Restart Yes
  • Filter Cleaning Indicator Yes
  • Indoor Temp. Display Yes
  • Display On/Off Yes
  • MEPS Yes
  • DRED No

Smart

  • WiFi Embedded No

App Connectivity

  • SmartThings App Support No
